50HP Explosion-Proof Condensing Unit with Piston Compressor 380V
Treten Sie mit mir für freie Proben und Kupons in Verbindung.
whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.
xProduktdetails
| Gewicht | 1500 kg | Kältemittel | R404a |
|---|---|---|---|
| Kompressortyp | Kolben | Pferdekraft | 50hp |
| Stromspannung | 380 V/3PH/50 Hz | Wärmeaustausch-Bereich | 480 m² |
| Kondensatorventilator | 3 PCs | Klingendurchmesser | 630 MILLIMETER |
| Luftvolumen | 3*12420 m³/h | Saugrohr | 54 mm |
| Auslassrohr | 35 mm | Länge | 3850 Millimeter |
| Breite | 1000 mm | Höhe | 2000 mm |
| Kernkomponenten | Kompressor | ||
| Hervorheben | 50HP explosion-proof condensing unit,piston compressor refrigeration unit,380V industrial condensing unit |
||
Produkt-Beschreibung

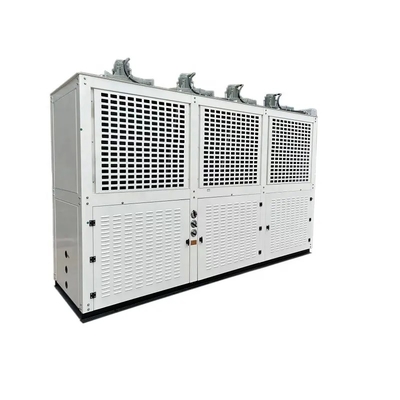

KUB-FV-50XXM 50HP Explosion-Proof Condensing Unit
Product Overview
The KUB-FV-50XXM is a reliable 50HP explosion-proof condensing unit featuring hot fluorine defrost refrigeration technology. Designed for demanding industrial applications, this unit combines robust construction with efficient performance.
Key Specifications
| Attribute | Value |
|---|---|
| Weight | 1500 KG |
| Refrigerant | R404A |
| Compressor | 50HP piston compressor |
| Voltage | 380V/3Ph/50Hz |
| Warranty | 1 Year |
| After-sales Service | Online support |
| Application | Chemical warehouse |
| Origin | Shanghai |
Technical Specifications
| Model | Horsepower | Voltage | Heat Exchange Area (m²) | Condenser Fan Qty | Blade Diameter (mm) | Air Volume (m³/h) | Suction Pipe (mm) | Outlet Pipe (mm) | Dimensions L×W×H (mm) |
|---|---|---|---|---|---|---|---|---|---|
| KUB-FV-50XXM | 50HP | 380V-3PH-50HZ | 480 | 3 | 630 | 3×12420 | 54 | 35 | 3850×1000×2000 |
Product Images
Frequently Asked Questions
Q1: Are you a manufacturer or trading company?
A1: We are the factory that produces condensing units, chillers, and evaporators.
Q2: What about the shipping methods?
A2: Available shipping methods include express, air, and sea freight.
Q3: What are the payment methods & terms?
A3: We accept T/T, Paypal, Western Union, and cash. Standard terms are 30% deposit with 70% balance before shipment.
Q4: What's your delivery time and loading port?
A4: Typically 35-60 days after payment. Loading port is Shanghai, or other Chinese ports per your requirements.
Q5: Can I have a sample first?
A5: Samples are available at cost.
Q6: How do you ship the goods and how long does it take to arrive?
A6: We ship via LCL/FCL sea freight (≈30 days), air freight (5-7 days), or express delivery.
Packaging & Warranty
Customization: We provide design services for refrigeration applications in agriculture, food service, chemical industries, and cold storage engineering.
Warranty: KUB offers a comprehensive 1-year warranty. We stand behind our product quality and provide excellent after-sales service.
