3HP Air Cooled Condensing Unit 380V 60Hz for Cold Storage Freezer
Treten Sie mit mir für freie Proben und Kupons in Verbindung.
whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.
xProduktdetails
| Stromspannung | 380V 60hZ | Dimension | Anpassbar |
|---|---|---|---|
| Kühlkapazität | Mittlere Temperatur | Kältemittel | R404a |
| Temperaturbereich | -20-8 ° C. | Gewicht | 100 kg |
| Kompressortyp | Hermetisch | Typ des Kondensators | Luft abgekühlt |
| Pferdekraft | 3 PS | Kompressormodell | MLZ021T9LP9A |
| Fläche des Kondensators | 24m² | Kältemittelempfänger | 3L |
| Filter-Trockner | 083S | Magnetventil | 10 mm |
| Druckregler | P830e | ||
| Hervorheben | 3HP air cooled condensing unit,380V condensing unit for freezer,cold storage refrigeration unit |
||
Produkt-Beschreibung

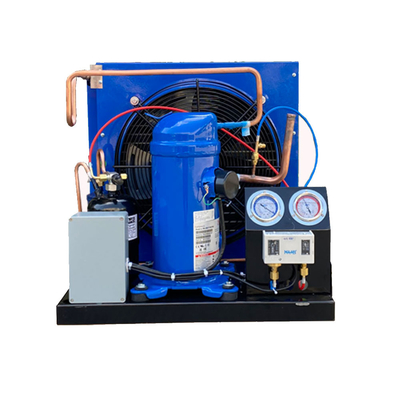

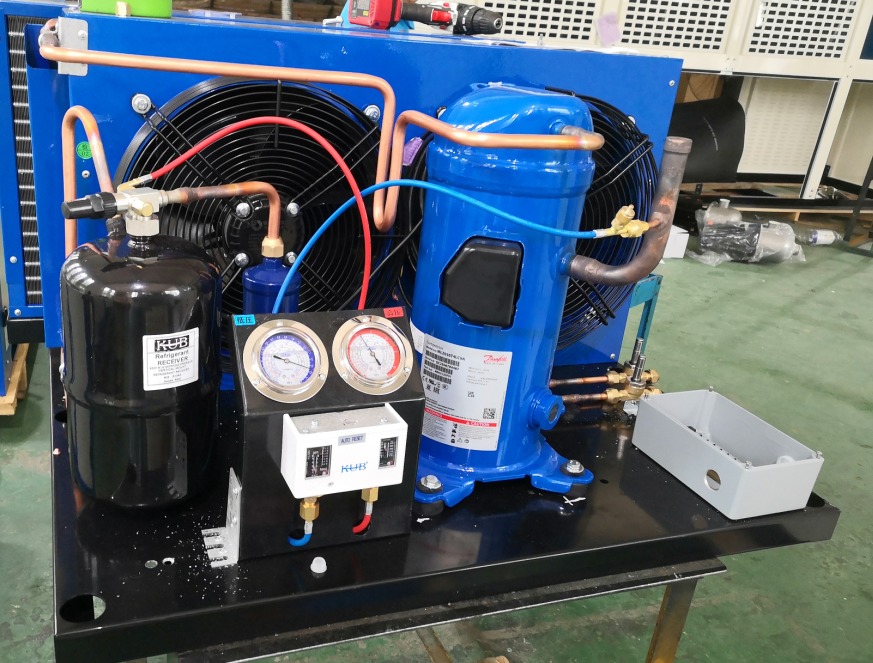

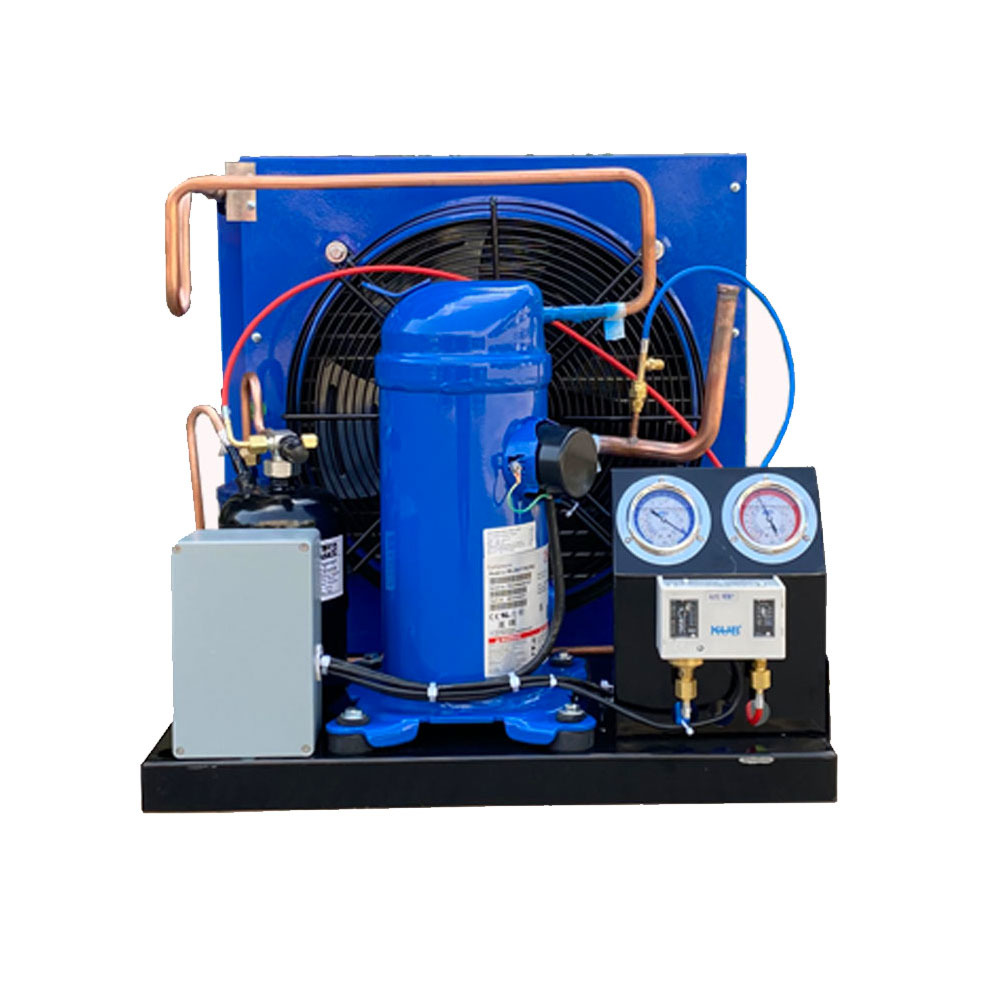

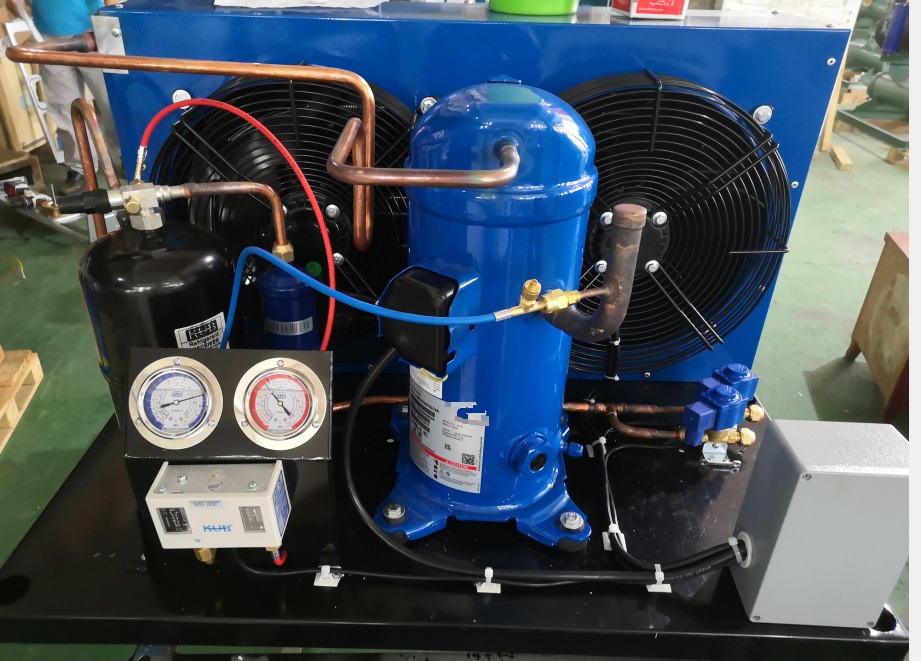

MLZ021 380V 60HZ Compressor Condensing Unit
Key Features
- 3HP compressor with 380V 3PH 60HZ voltage

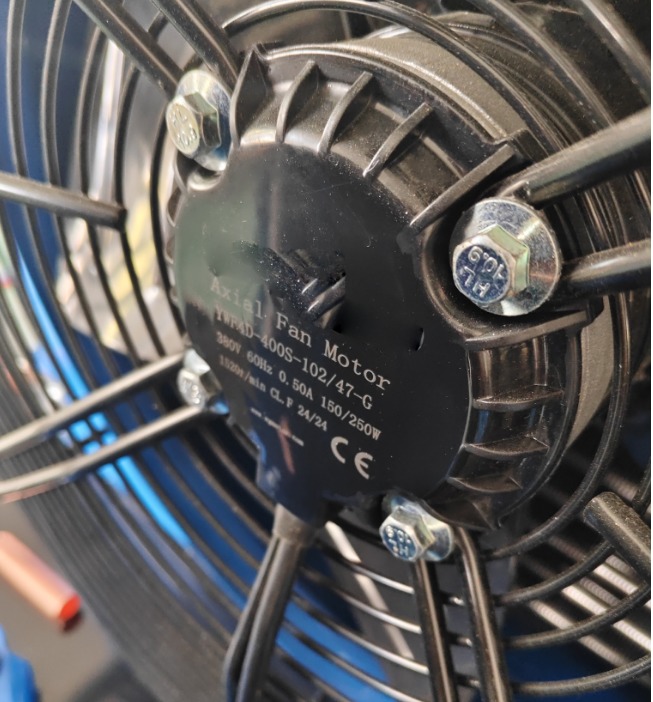

- Air cooled condenser for efficient cooling
- Medium temperature cooling capacity (-20°C to 8°C)
- Uses R404A refrigerant
- Famous brand hermetic compressor
- Energy saving design with long service life
- 1 year warranty with online after-sales service
Technical Specifications
| Model | MLZ021 |

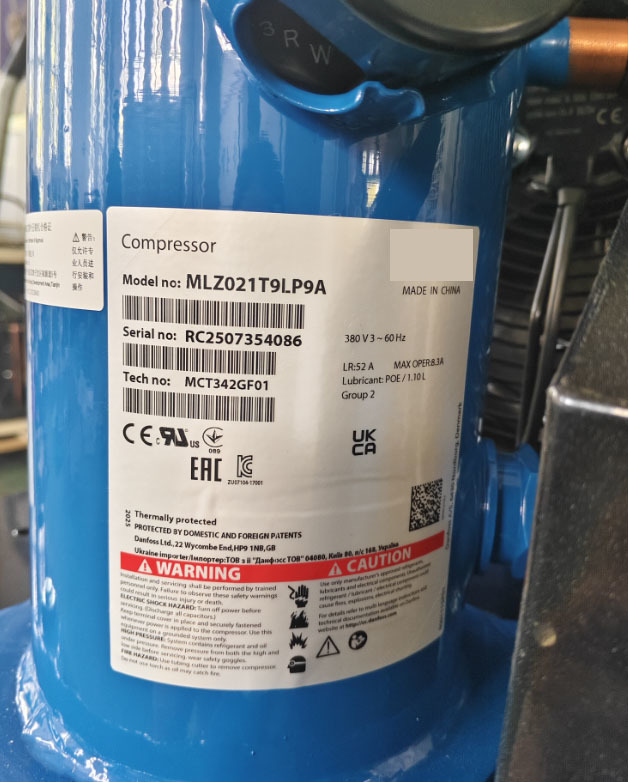

| Compressor | MLZ021T9LP9A (1 unit) |
| Condenser | 24m² air cooled (1 unit) |
| Refrigerant Receiver | 3L (1 unit) |
| Filter Drier | 083S (1 unit) |
| Solenoid Valve | 10mm (1 unit) |
| Pressure Controller | P830E (1 unit) |
| Weight | 100 KG |
| Minimum Order Quantity | 1 Set |
Applications
Ideal for cold storage rooms, freezer rooms, and various refrigeration needs in agriculture, food service, restaurant, and chemical industries.
Customization & OEM Services
We offer customized service and welcome OEM orders. Our team can design solutions according to your specific requirements.
Quality Assurance
We provide up to one year warranty period. If there are any product quality problems, we will handle returns and be responsible until the issue is resolved.
Frequently Asked Questions
Q1: Are you a manufacturer or trading company?
A1: This compressor we are agent, but we are factories that produce condensing units, chillers, and evaporators.
Q2: What about the shipping methods?
A2: By express/By air/By sea.
Q3: What about the payment methods & payment terms?
A3: We accept T/T, Paypal, Western Union, Cash, etc. After 30% deposit, and 70% balance before the shipment.
Q4: What's your delivery time? Where is the loading port?
A4: Usually within 35-60 days after receiving the payment. Loading port: Shanghai, other place in China according to your requirement.
Q5: Can I have a sample first?
A5: You have to pay sample cost.
Q6: How do you ship the goods and how long does it take to arrive?
A6: We usually ship goods by LCL or FCL by sea, by air or express delivery. Typically takes 30 days by sea, 5-7 days by air or express delivery.
