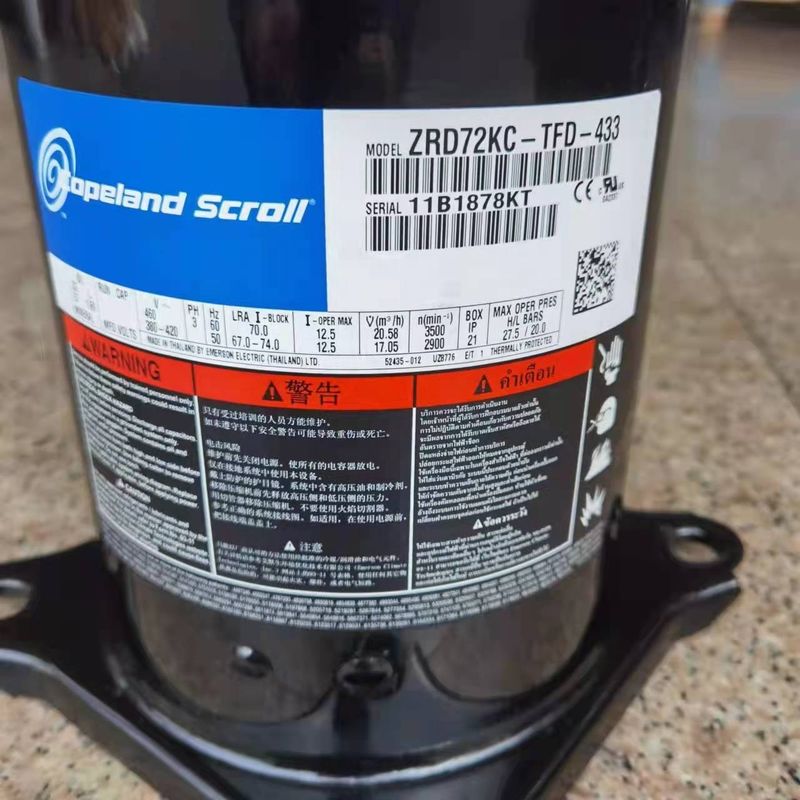

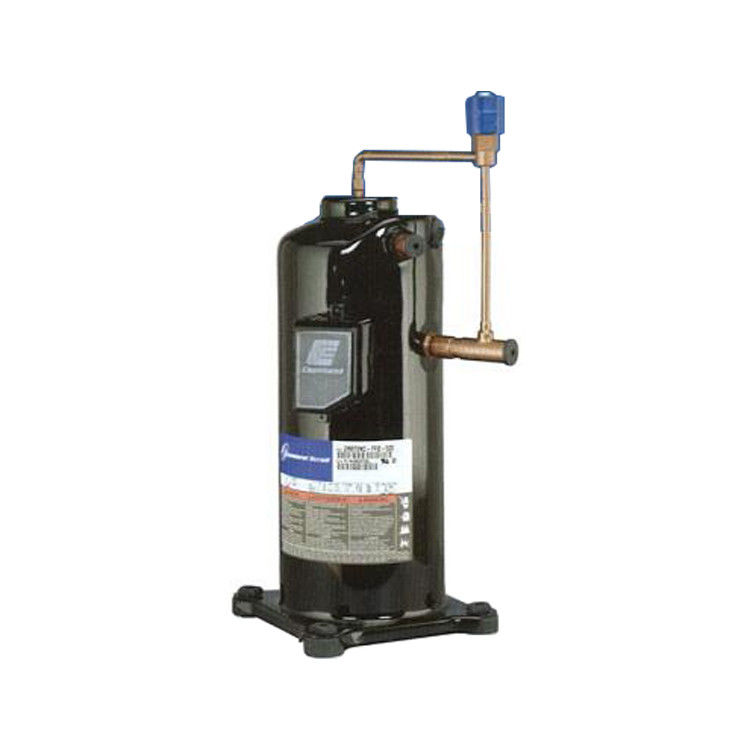

ZRD72KC ZRD72KC-TFD-433 6HP compressor Copeland digital compressor

Herkunftsort Shanghai, China
Markenname KUB
Zertifizierung CE
Modellnummer ZRD72KC
Min Bestellmenge 20
Preis Consult
Verpackung Informationen Palettenverpacken
Lieferzeit 20days
Zahlungsbedingungen L/C, D/A, D/P, T/T, Western Union, MoneyGram
Versorgungsmaterial-Fähigkeit 1000-teilig/Stücke pro Jahr

Treten Sie mit mir für freie Proben und Kupons in Verbindung.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.

x
Produktdetails
Stromversorgung 380-420v 3ph 50hz Kompressorart Hermetischer Kompressor
Strukturart Horizontal Kühlmittel R22
Kälteleistung 17600 Energie 5330
Testbedingungen EIN
Hinterlass eine Nachricht
Produkt-Beschreibung

ZRD72KC ZRD72KC-TFD-433 6HP compressor Copeland digital compressor



Model Horsepower Cooling capacity Input power Current COP EER
W Btu/h W A W/W (Btu/Wh)
ZRD72KC TFD 17600  60200  5330  9.6  3.31  11.3
Model Refrigerant Displacement Filling oil N.W Stall current Noise Voltage
(cc/Rev) L kg A dBA
ZRD72KC TFD R22 98.1  1.89  39.9  74  71  380-420v 3ph 50hz




Copeland scroll compressors are perfect for split, rooftop, unit and chiller systems.
Copeland digital scroll compressors provide infinite capacity adjustment for air conditioning applications and are suitable for R22, R407C and R410A refrigerants.
In many refrigeration and heating system applications, the load and operating conditions of the system vary over a wide range, and at this time, adjustable capacity output is necessary. Copeland Digital Scroll is a simple and reliable compressor solution with energy output adjustable down to 10% of nominal cooling capacity, meeting multiple requirements for precise temperature and humidity control, comfort and energy savings.

Copeland digital scroll compressors are perfect for VRF multi-line, rooftop, chiller and process cooling.
